UCP300 vertical with set screw

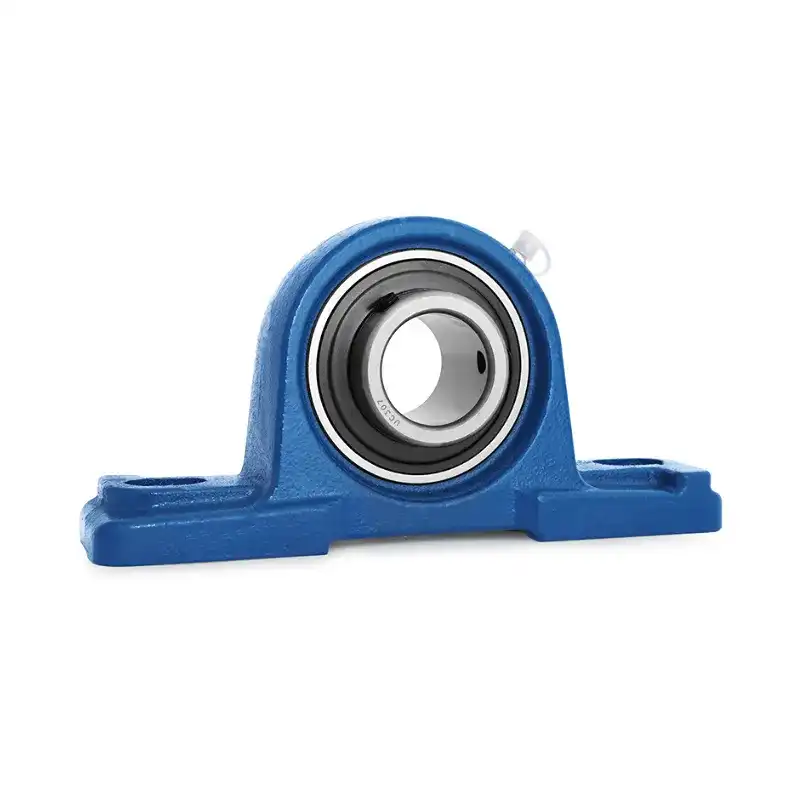

The UCP300 is a complete unit comprising a heavy-duty vertical P-type cast iron bearing housing paired with a UC300 spherical outer ring bearing with set screws. The housing features dual mounting holes and is designed for vertical mounting. The bearing inner ring is widened and thickened, whilst set screws on both sides secure the shaft, facilitating easy installation and removal. The spherical outer ring provides self-aligning capability, compensating for misalignment during installation.

Compared to the UCP200, the bearing balls and inner ring are larger, offering greater load-bearing capacity and impact resistance. The cast iron housing is robust and highly rigid, whilst the double-sealed design provides protection against dust and debris. The unit is primarily designed to withstand radial loads, whilst also being capable of handling minor bidirectional axial loads.

Suitable for: heavy-duty conveyors, crushers, agricultural machinery, light mining equipment and fans.

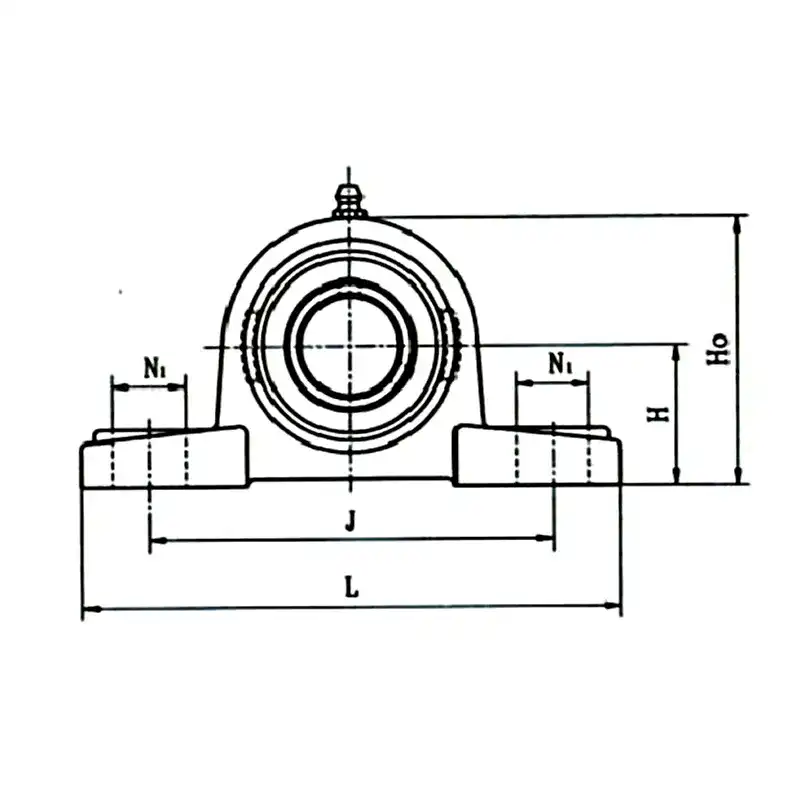

Bearing code	Shaft diameter d	Overall Dimensions（mm）										Bolt specification	Model	Seat code	Weight （kg）
Bearing code	Shaft diameter d	H	L	J	A	N	N1	H1	Ho	S	B	Bolt specification	Model	Seat code	Weight （kg）
UC328	140	200	620	500	140	40	55	75	390	59	145	M33	UCP328	P328	82.1
UC326	130	180	600	480	140	40	55	75	355	54	135	M33	UCP326	P326	68.4
UC324	120	160	570	450	140	40	55	65	320	51	126	M33	UCP324	P324	54.5
UC322	110	150	520	400	140	40	55	55	300	46	117	M33	UCP322	P322	50.6
UC320	100	140	490	380	120	36	50	50	275	42	108	M30	UCP320	P320	37.2
UC319	95	125	470	360	120	36	50	45	250	41	103	M30	UCP319	P319	31.8
UC318	90	118	430	330	110	33	45	45	235	40	96	M27	UCP318	P318	25.1
UC317	85	112	420	320	110	33	45	40	220	40	96	M27	UCP317	P317	20.5
UC316	80	106	400	300	105	27	40	37	210	34	86	M22	UCP316	P316	17.7
UC315	75	100	380	290	100	27	40	35	198	32	82	M22	UCP315	P315	15.9
UC314	70	95	360	280	93	27	40	34	187	31	78	M22	UCP314	P314	13
UC313	65	90	335	260	90	25	38	33	176	30	75	M20	UCP313	P313	11.3
UC312	60	85	325	250	85	23	35	31	164	26	71	M20	UCP312	P312	9.2
UC311	55	80	300	236	80	20	32	29	154	25	66	M16	UCP311	P311	7.65
UC310	50	75	271	212	74	20	30	26	143	22	61	M16	UCP310	P310	6.1
UC309	45	67	244	190	66	20	26	23	129	22	57	M16	UCP309	P309	4.41
UC308	40	60	218	170	62	18	25	19	116	19	52	M14	UCP308	P308	3.33
UC307	35	56	210	160	56	17	25	19	106	19	48	M14	UCP307	P307	2.98
UC306	30	50	180	140	49	17	20	16	95	17	43	M14	UCP306	P306	1.8
UC305	25	45	173	132	45	17	20	15	85	15	38	M14	UCP305	P305	1.46
