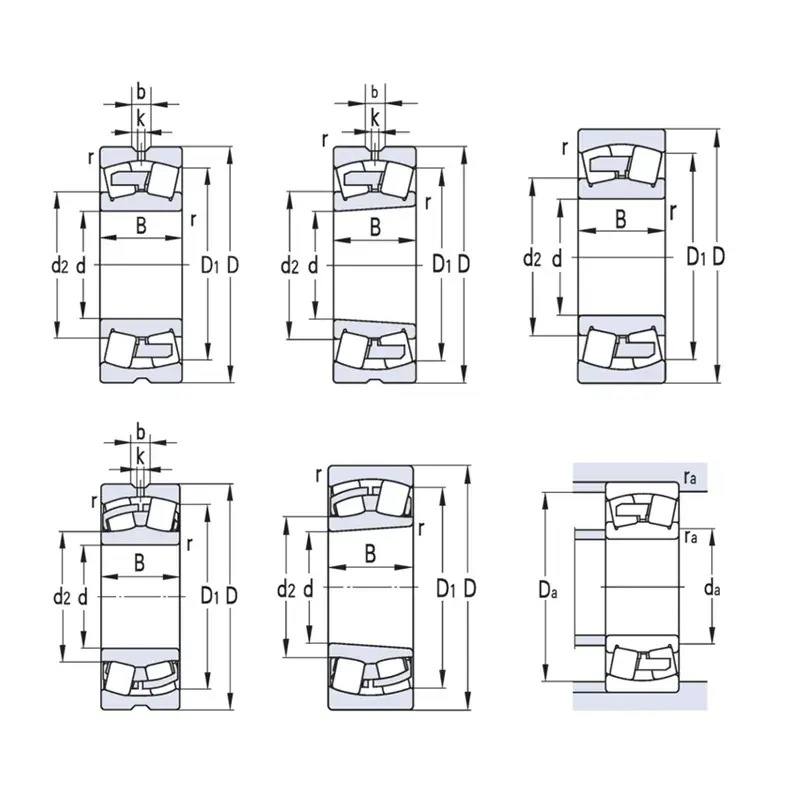

The E Series self-aligning roller bearings feature an optimised internal structure design, with a double-row symmetrical barrel-shaped roller arrangement. The central rib on the inner ring has been removed, and the bearings are fitted with a stamped steel cage. The roller guidance structure has been optimised to reduce operating friction and improve heat dissipation. These bearings have an open design and require external sealing; they are suitable for both grease lubrication and circulating oil lubrication. Compared with conventional CC-type bearings, the E Series features an optimised contact profile between the rollers and raceways, reducing contact stress, offering higher rated loads, lower operating noise and improved fatigue life; compared with the E1 Series, it is positioned as the basic model and offers outstanding value for money. It is widely used in various medium- to heavy-duty industrial transmission equipment, such as conveyors, fans, cement machinery, mining machinery, general-purpose gearboxes and construction machinery.
| Bearing model number | Basic Dimensions（mm） | Basic load （KN） |
Rated speed(rpm) | Bearing weight | ||||
|---|---|---|---|---|---|---|---|---|
| Cylindrical hole | Conical hole | d inner diameter |
D outer diameter |
B thickness |
Dynamic load Cr |
Static load Cor |
Limiting Speed | |
| 22226 E | 22226 EK | 130 | 230 | 64 | 758 | 930 | 3 600 | 11 |
| 22224 E | 22224 EK | 120 | 215 | 58 | 652 | 765 | 3 800 | 8.7 |
| 22322 E | 22322 EK | 240 | 80 | 989 | 1 120 | 2 800 | 18.5 | |
| 22222 E | 22222 EK | 110 | 200 | 53 | 572 | 640 | 4 000 | 7 |
| 22320 E | 22320 EK | 100 | 215 | 73 | 847 | 950 | 3 000 | 13.5 |
| 21320 E | 21320 EK | 100 | 215 | 47 | 433 | 490 | 4 500 | 8.6 |
| 22220 E | 22220 EK | 100 | 180 | 46 | 433 | 490 | 4 500 | 4.9 |
| 22319 E | 22319 EK | 95 | 200 | 67 | 699 | 765 | 3 400 | 10.5 |
| 21319 E | 21319 EK | 95 | 200 | 45 | 433 | 490 | 4 500 | 7.05 |
| 22219 E | 22219 EK | 95 | 170 | 43 | 393 | 450 | 4 800 | 4.15 |
| 22318 E | 22318 EK | 90 | 190 | 64 | 637 | 695 | 3 600 | 9.05 |
| 21318 E | 21318 EK | 90 | 190 | 43 | 393 | 450 | 4 800 | 6.1 |
| 22218 E | 22218 EK | 90 | 160 | 40 | 331 | 375 | 5 300 | 3.4 |
| 22317 E | 22317 EK | 85 | 180 | 60 | 577 | 620 | 3 800 | 7.65 |
| 21317 E | 21317 EK | 85 | 180 | 41 | 331 | 375 | 5 300 | 5.2 |
| 22217 E | 22217 EK | 85 | 150 | 36 | 291 | 325 | 5 600 | 2.7 |
| 22316 E | 22316 EK | 80 | 170 | 58 | 516 | 530 | 4 000 | 6.6 |
| 21316 E | 21316 EK | 80 | 170 | 39 | 331 | 375 | 5 300 | 4.45 |
| 22216 E | 22216 EK | 80 | 140 | 33 | 243 | 270 | 6 000 | 2.1 |
| 22315 E | 22315 EK | 75 | 160 | 55 | 462 | 475 | 4 300 | 5.55 |
